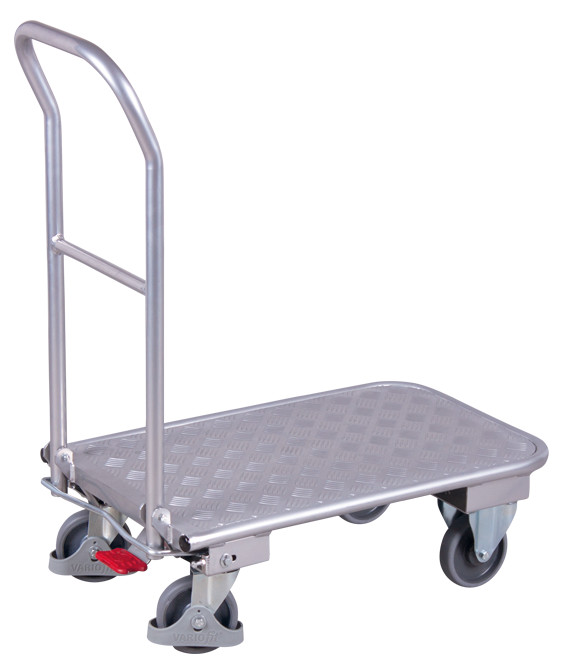

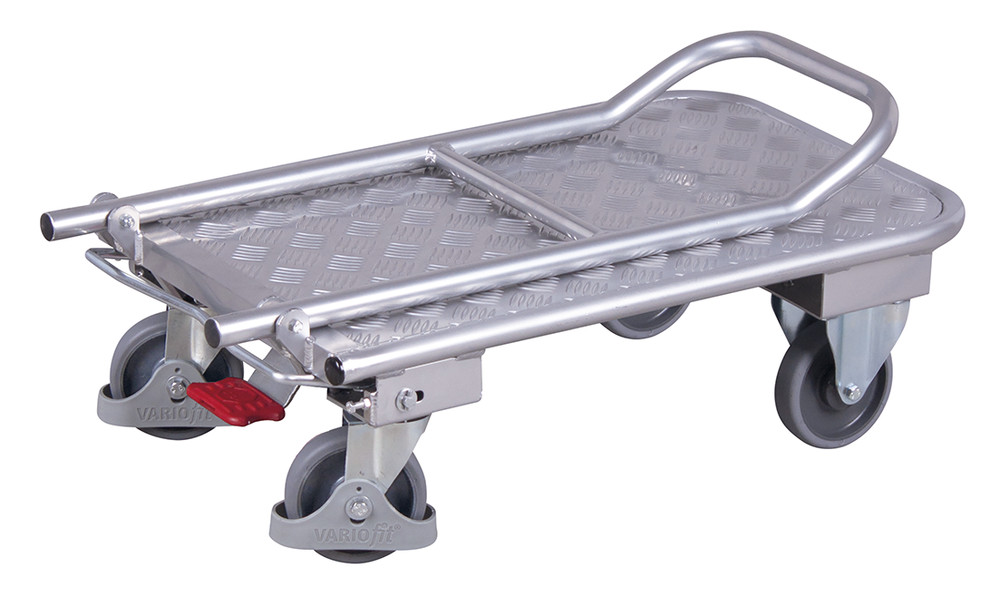

Welded aluminium construction; folding push bar; Transverse strut in push bar; Load surface of diamond-tread plate; Grey non-marking thermoplastic rubber tyres on plastic wheel rim with precision deepgroove ball bearings; Thread guard and foot guard; 2 EasySTOP swivel castors and 2 fixed castors.
| Article no. | Loading surface | Dimension | Wheel Ø | Gear Width | Load capacity | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | kg | kg | |||||
| Width | Depth | Width | Depth | Height | ||||||
| ap-450.803 | 720 | 450 | 815 | 450 | 950 | 125 | 30 | 200 | 10,0 | |
| ap-600.803 | 900 | 600 | 995 | 600 | 990 | 160 | 40 | 200 | 17,5 | |
